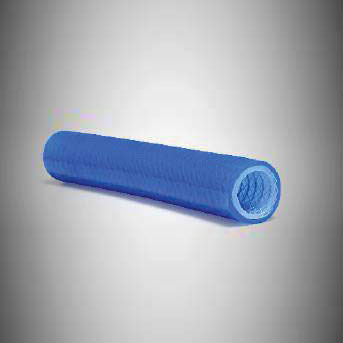

Platinum Cured Silicone Hose Reinforced with Polyester Braiding and SS 316L Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire and polyester braiding having better exibility with high pressure resistance. This is having high burst pressure rating along with high vacuum resistance.The product is suitable in pressurized.

Application

• Pharmaceutical processing
• Powder and fluid transfer
• High vacuum pump applications
• Food processing
• Load cell application
• Biotechnology
• Bulk transfer
• Fermentations and bioreactors

Certification

• Conforms to US FDA 21 CFR 177.2600 Food Grade Standard
• Conforms to USP Class VI Conforms to ISO 10993-1
• ROHS certified, free of restricted heavy metals
• Free of Phthalate/ Bisphenol/Volatile Plasticizer.
• Animal Origin Certication (free of animal derived material)
• USFDA DMF No. - 29761
• Complete Validation Package available upon request

Key Features

• Having high burst pressure resistance
• Designed for high vacuum rating applications
• Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile flammable fluid transfer
• Imparts no taste and odor
• Lot traceable
• Temp Range :- -80 °C TO 180°C
• Available with SS316 L Tri-clover end
• Sterilizable by Autoclave, Ethylene oxide gas & gamma Radiation


Sr.No. Size In MM (ID x OD)  Size in Inch (ID)  Max Working Pressure IN (Bar) At 270C Min Burst Pressure IN (Bar) At 270C Min Bend Radius In (MM)  Vacuum Hg In (MM) 270C
1 6x13 1/4” 12.5 48.5 60 760
2 9x16 11/32” 12 48 70 760
3 12x20 1/2” 11 41.5 70 760
4 16x24 5/8” 10.5 36 85 760
5    19x27 3/4” 9 35 95 760
6 25x35 1” 8.5 35 140 760
7 32x42 1 1/4” 8.5 35 150 600
8 37x47 1 1/2” 7.5 32 175 600
9 50x62 2” 6.5 30 245 550
10 64x76 2 1/2” 4 20 C/P 500
